LABORATORY KITS

Laboratory Kits, Alat Praktikum Teknik Elektro, Teknik Elektronika & Instrumentasi, Teknik Mesin dan Modular Production Systems.

Alat praktikum elektronika, motor listrik, mikrokontroler, sensor, sistem kendali, PLC, pneumatik, dan hidrolik untuk SMK, politeknik, dan universitas. Buatan Yogyakarta, ready stock, garansi 1 tahun, modul praktikum included.

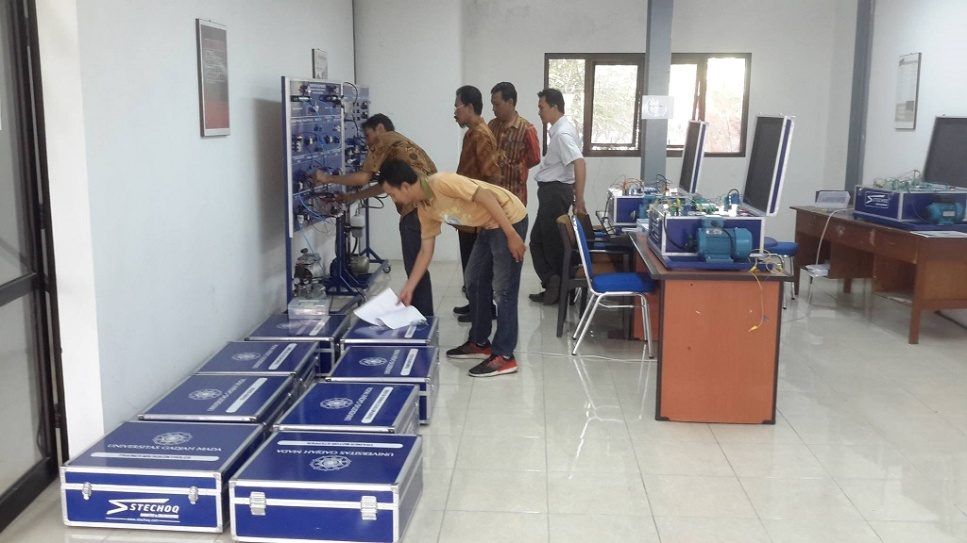

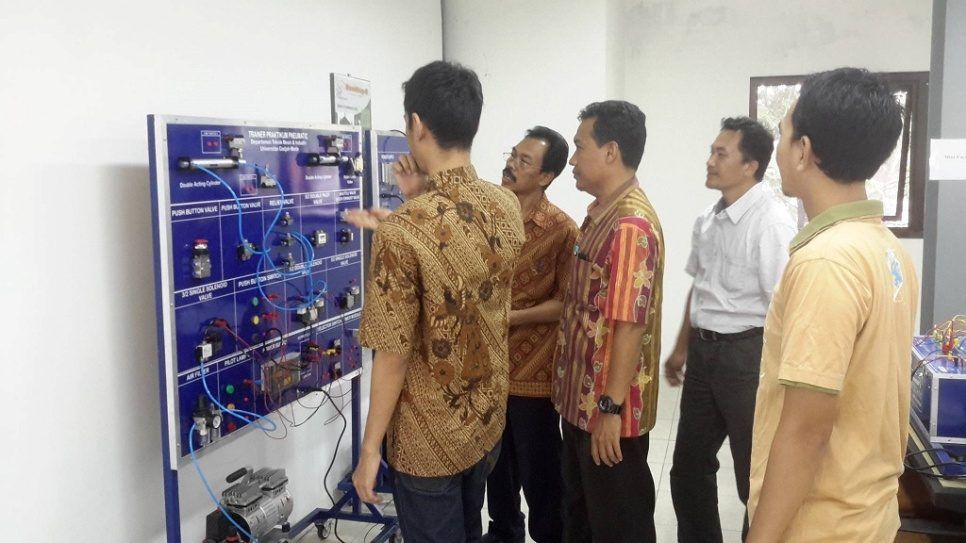

Dosen memeriksa alat praktikum STECHOQ Tim STECHOQ dengan alat praktikum dalam flight case Mahasiswa praktikum dengan laptop Dosen di depan panel trainer Pelatihan alat praktikum
Sorting StationProcessing StationRobot Station
MPSLini produksi

Modular Production SystemAlat praktikum otomasi industri & mekatronika

9 stasiun, dari distribution sampai storage dan robot. Beli per stasiun, paket, atau satu lini lengkap. Diproduksi STECHOQ.

Lihat 9 stasiun
Elektronika

Elektronika

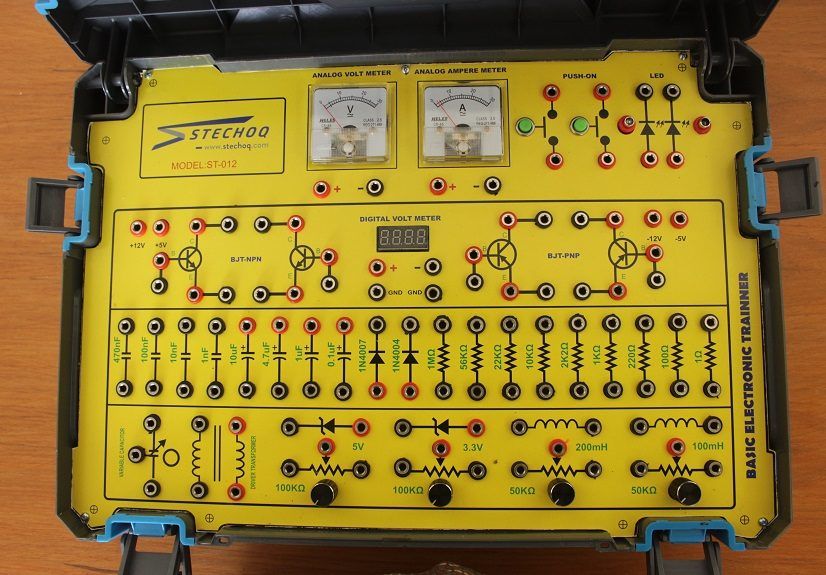

Alat Praktikum Elektronika Dasar

Basic Electronics Laboratory KitAlat Praktikum Elektronika Dasar

SPESIFIKASI
  • 1 × AC motor FUJITA ML7112
  • 2 × diode variants
  • 2 × push button
  • 1 × digital voltmeter
  • 8 × resistor variants
  • 8 × capacitor variants
  • 2 × inductor variants
  • 2 × potentiometer variants
  • 2 × transistor variants
  • 1 × work case
  • Modul praktikum
TOPIK PRAKTIKUM
Ohm's lawRC / RL responseDiode & transistor characteristics
Garansi 1 tahun · Modul praktikum includedMinta penawaran
Alat Praktikum Elektronika Digital

Digital Electronics Laboratory KitAlat Praktikum Elektronika Digital

SPESIFIKASI
  • 2 × AND
  • 2 × OR
  • 4 × NOT
  • 2 × NOR
  • 2 × XOR
  • 2 × NAND
  • 1 × decoder
  • 1 × multiplexer
  • 1 × counter & adder
  • 1 × shift register
  • Modul praktikum
TOPIK PRAKTIKUM
Combinational logicSequential circuitsCounters & registers
Garansi 1 tahun · Modul praktikum includedMinta penawaran
Alat Praktikum Mikrokontroler

Microcontroller Laboratory KitAlat Praktikum Mikrokontroler

SPESIFIKASI
  • 1 × Arduino Mega
  • 4 × 7-segment display 1.5 inch
  • 1 × LCD 16×2
  • 1 × keypad 4×4
  • 1 × RTC DS1307
  • 1 × relay 12 V
  • 8 × LED 3 mm
  • 1 × buzzer 3 V
  • 1 × motor driver L298
  • 1 × DC motor 12 V
  • 1 × ADC module
  • 1 × aluminium work case 60 × 50 × 30 cm
  • Modul praktikum
TOPIK PRAKTIKUM
GPIO & timersDisplays & inputADC, PWM, motor drive
Garansi 1 tahun · Modul praktikum includedMinta penawaran

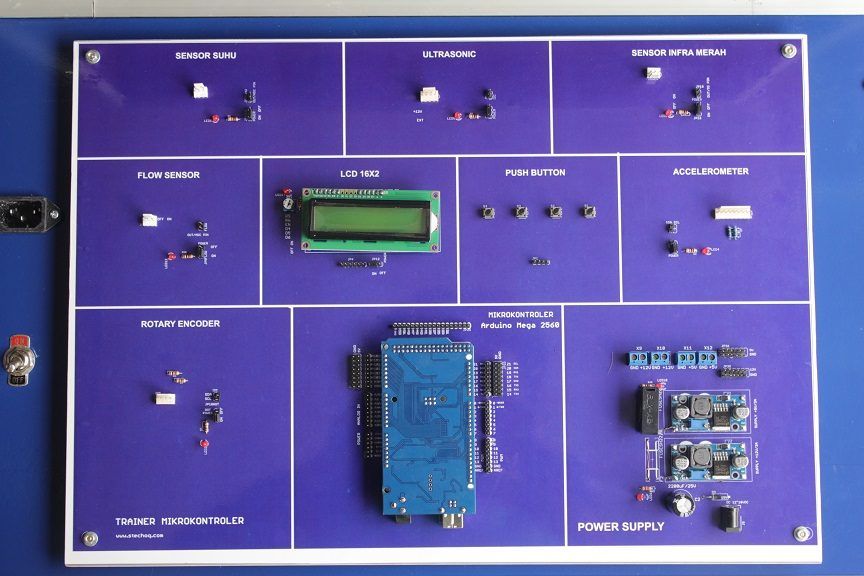

Alat Praktikum Sensor

Sensor Laboratory KitAlat Praktikum Sensor

SPESIFIKASI
  • 1 × Arduino Mega
  • 1 × temperature sensor LM35
  • 1 × Autonics encoder
  • 1 × flow sensor ½ inch
  • 1 × accelerometer
  • 1 × IR proximity sensor
  • 1 × ultrasonic sensor SRF05
  • 1 × aluminium work case 60 × 50 × 30 cm
  • Modul praktikum
TOPIK PRAKTIKUM
Signal conditioningCalibrationSensor interfacing
Garansi 1 tahun · Modul praktikum includedMinta penawaran
Motor & Listrik

Motor & Listrik

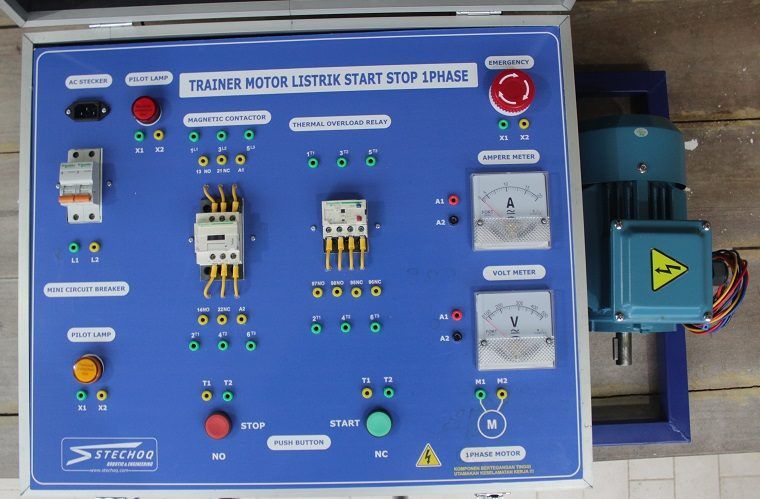

Alat Praktikum Motor Listrik AC 1 Fasa

AC Single-Phase Motor Laboratory KitAlat Praktikum Motor Listrik AC 1 Fasa

SPESIFIKASI
  • 1 × AC motor FUJITA ML7112
  • 1 × volt / ampere indicator
  • 1 × magnetic contactor
  • 1 × Schneider pilot lamp
  • 2 × Schneider push button
  • 1 × emergency latch
  • 1 × Schneider MCB
  • 1 × aluminium work case 60 × 50 × 30 cm
  • Modul praktikum
TOPIK PRAKTIKUM
Direct-on-line startingContactor logicProtection
Garansi 1 tahun · Modul praktikum includedMinta penawaran

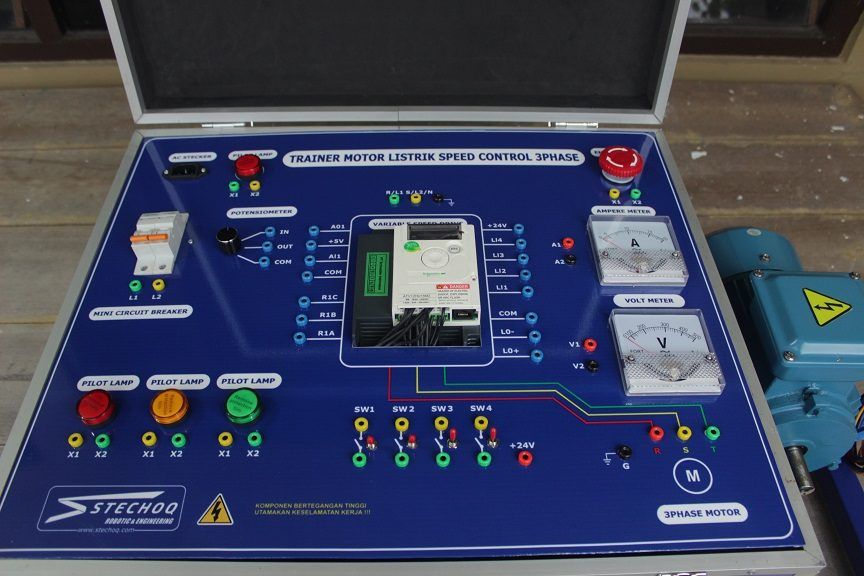

Alat Praktikum Motor Listrik AC 3 Fasa

AC Three-Phase Motor Laboratory KitAlat Praktikum Motor Listrik AC 3 Fasa

SPESIFIKASI
  • 1 × AC motor FUJITA Y2-8012
  • 1 × Schneider inverter
  • 1 × volt / ampere indicator
  • 1 × Schneider pilot lamp
  • 2 × Schneider push button
  • 1 × emergency latch
  • 1 × Schneider MCB
  • 1 × digital tachometer
  • 1 × aluminium work case 60 × 50 × 30 cm
  • Modul praktikum
TOPIK PRAKTIKUM
VFD operationSpeed-torqueForward / reverse
Garansi 1 tahun · Modul praktikum includedMinta penawaran

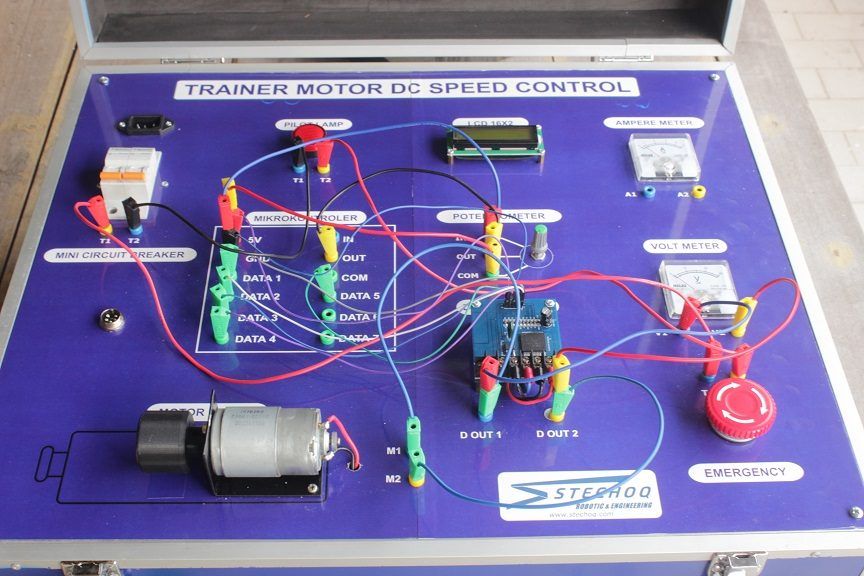

Alat Praktikum Motor Listrik DC

DC Motor Laboratory KitAlat Praktikum Motor Listrik DC

SPESIFIKASI
  • 1 × DC motor
  • 1 × volt / ampere indicator
  • 1 × LCD 16×2
  • 1 × emergency stop
  • 1 × Arduino Mega
  • 1 × VNH motor driver
  • 1 × digital tachometer
  • 1 × aluminium work case 60 × 50 × 30 cm
  • Modul praktikum
TOPIK PRAKTIKUM
PWM speed controlClosed-loop speedCharacterisation
Garansi 1 tahun · Modul praktikum includedMinta penawaran
Kontrol & Otomasi

Kontrol & Otomasi

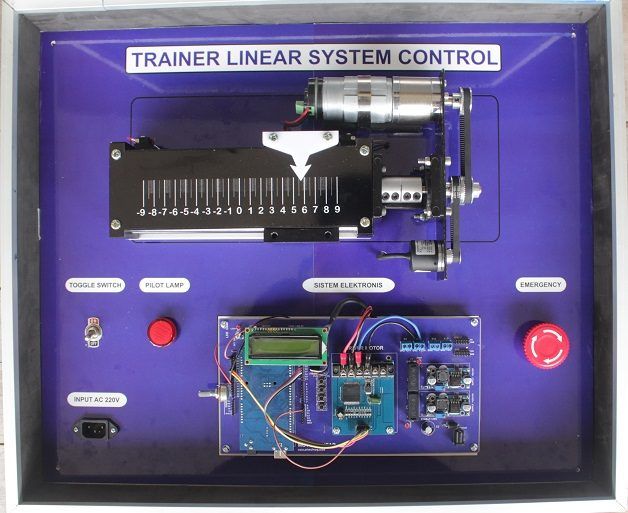

Alat Praktikum Sistem Kendali Linier

Linear Control System Laboratory KitAlat Praktikum Sistem Kendali Linier

SPESIFIKASI
  • 1 × DC motor 24 V
  • 1 × Arduino Mega 2560
  • 1 × push button start
  • 1 × push button stop
  • 1 × motor driver
  • 1 × LCD 16×2 green LED
  • 1 × Autonics rotary encoder
  • 1 × linear stage module 300 × 200 mm
  • 1 × aluminium work case 60 × 50 × 30 cm
  • Modul praktikum
  • PID software module
  • MATLAB PID program
TOPIK PRAKTIKUM
Position controlPID tuningMATLAB interface
Garansi 1 tahun · Modul praktikum includedMinta penawaran

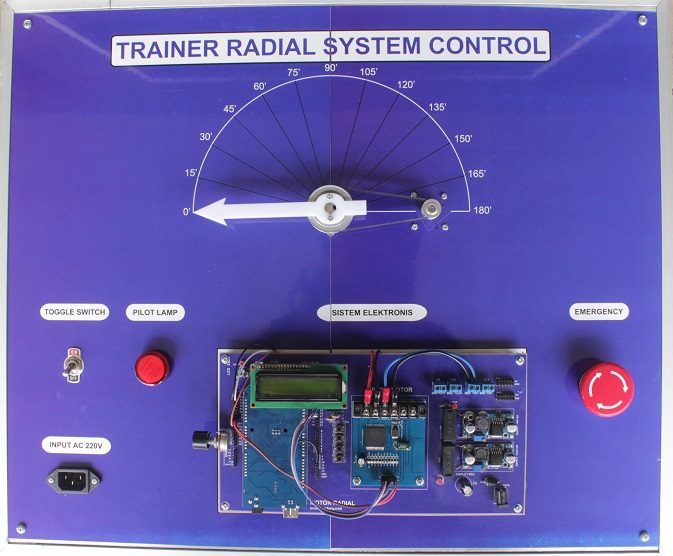

Alat Praktikum Sistem Kendali Radial

Radial Control System Laboratory KitAlat Praktikum Sistem Kendali Radial

SPESIFIKASI
  • 1 × DC motor 24 V
  • 1 × Arduino Mega 2560
  • 1 × push button start
  • 1 × push button stop
  • 1 × motor driver
  • 1 × LCD 16×2 green LED
  • 1 × rotation sensor
  • 1 × radial stage module, aluminium
  • Work case 60 × 50 × 30 cm
  • Modul praktikum
  • PID software module
  • MATLAB PID program
TOPIK PRAKTIKUM
Speed controlPID tuningMATLAB interface
Garansi 1 tahun · Modul praktikum includedMinta penawaran

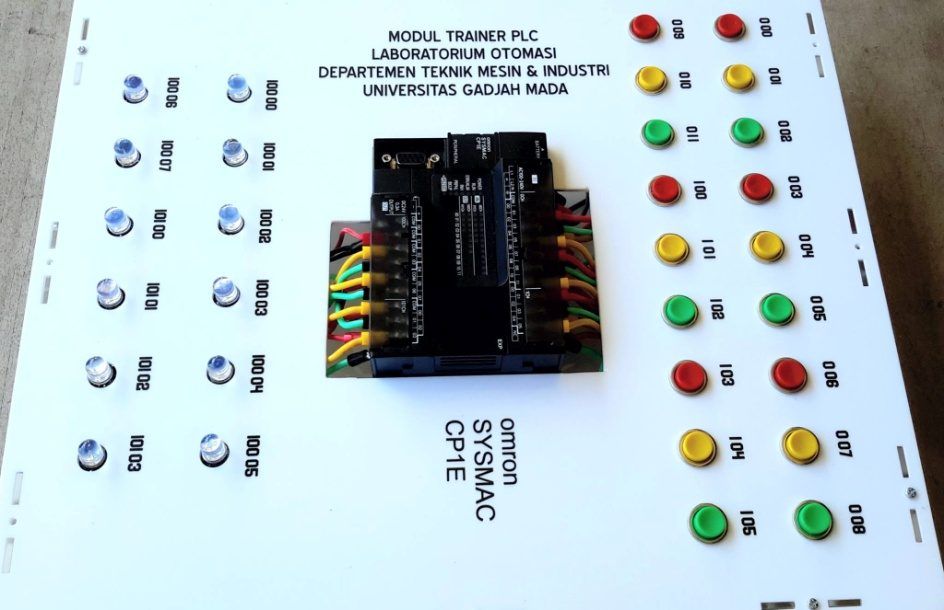

Alat Praktikum PLC (custom)

PLC Laboratory Kit (custom)Alat Praktikum PLC (custom)

SPESIFIKASI
  • PLC lab module built to the department's request
  • PLC in a work case, or on a frame board
  • PLC with an application-specific I/O set
  • Configured to the PLC brand in the syllabus (Omron, Siemens, Schneider, Mitsubishi)
  • Modul praktikum
TOPIK PRAKTIKUM
Ladder logicI/O wiringHMI basics
Garansi 1 tahun · Modul praktikum includedMinta penawaran
Pneumatik & Hidrolik

Pneumatik & Hidrolik

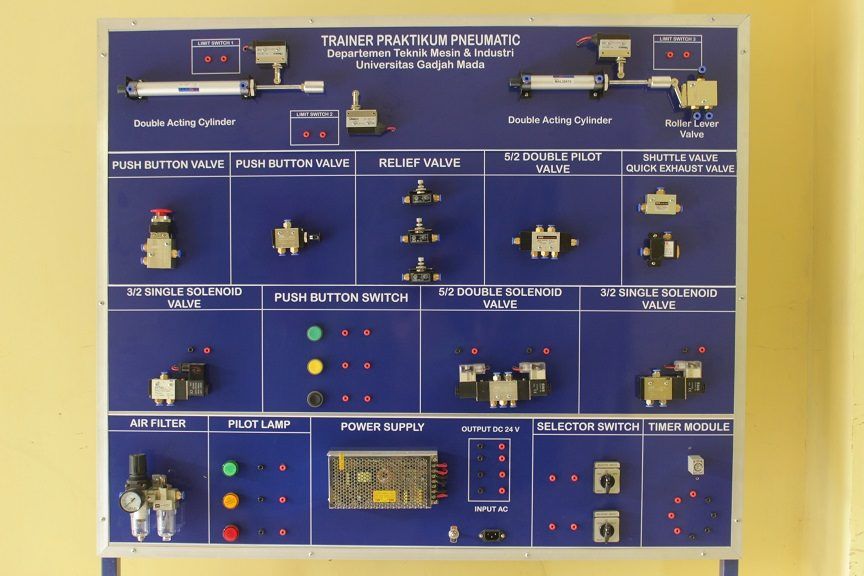

Alat Praktikum Pneumatik

Pneumatic Laboratory KitAlat Praktikum Pneumatik

SPESIFIKASI
  • 1 × 3/2-way valve, push button
  • 1 × 3/2-way valve, selector switch NC
  • 1 × 3/2-way single solenoid valve NC
  • 1 × 3/2-way double solenoid valve NC
  • 1 × 3/2-way valve, roller lever, 0.15–0.8 MPa
  • 1 × shuttle valve, 1 × quick exhaust valve
  • 1 × 5/2-way double pilot valve
  • 1 × 5/2-way double solenoid valve
  • 3 × one-way flow control valve
  • 1 × timer delay valve module
  • 1 × double-acting cylinder 0.8 MPa, 15 cm stroke
  • 1 × double-acting cylinder 0.8 MPa, 25 cm stroke
  • 3 × limit switch, die-cast case
  • 2 × LED push button 22 mm
  • 2 × selector switch 3 mode
  • 1 × power supply 220 VAC / 24 VDC
  • 1 × air filter regulator & lubricator
  • 1 × compressor
  • 10 × banana jack
  • 10 × PU hose 6 mm
  • Frame 120 × 150 cm
  • Modul praktikum
TOPIK PRAKTIKUM
Circuit designElectro-pneumaticsSequencing
Garansi 1 tahun · Modul praktikum includedMinta penawaran

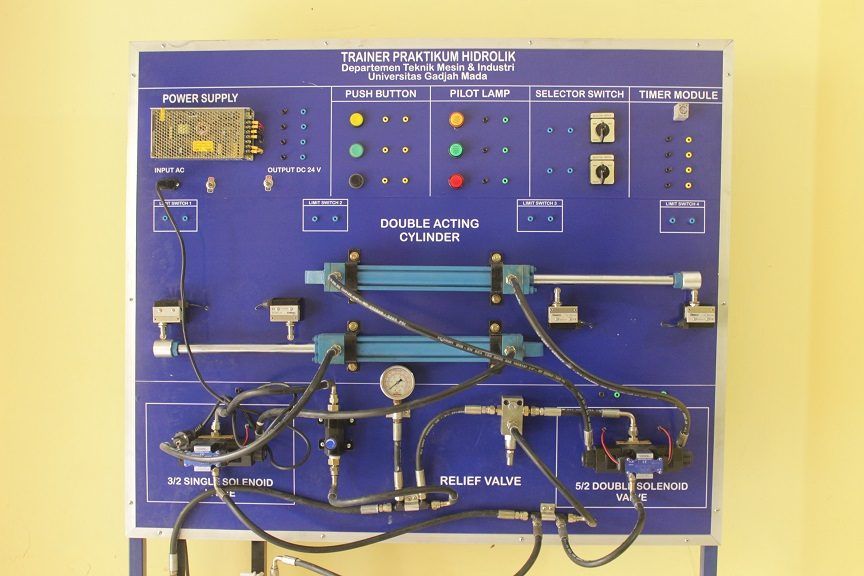

Alat Praktikum Hidrolik

Hydraulic Laboratory KitAlat Praktikum Hidrolik

SPESIFIKASI
  • 1 × 4/2-way single-solenoid valve 24 MPa
  • 1 × 4/3-way double-solenoid valve 24 MPa
  • 1 × relief valve 24 MPa
  • 1 × check valve 24 MPa
  • 1 × 3-way distributor 24 MPa, 6 A
  • 2 × double-acting cylinder
  • 1 × motor pump and oil tank
  • 2 × limit switch
  • 3 × LED push button
  • 1 × relay timer 24 VDC
  • 1 × power supply 220 VAC / 24 VDC
  • 10 × banana jack
  • 10 × hydraulic hose
  • Frame 120 × 150 cm
  • Modul praktikum
TOPIK PRAKTIKUM
Hydraulic circuitsPressure controlSequencing
Garansi 1 tahun · Modul praktikum includedMinta penawaran

Modul praktikum di setiap kit

Percobaan langkah demi langkah sesuai silabus, dengan catatan untuk dosen.

Siap untuk pengadaan

Penawaran resmi, spesifikasi teknis, dan dokumen TKDN untuk pengadaan instansi.

Dibuat dan diservis di Yogyakarta

Spare part tersedia, perbaikan oleh engineer yang membuat kit, pelatihan laboran saat pengiriman.

Lengkapi lab atau tambah stasiun baru.

Kirim nama jurusan dan mata kuliahnya, kami kirim konfigurasi dan penawaran resmi.
